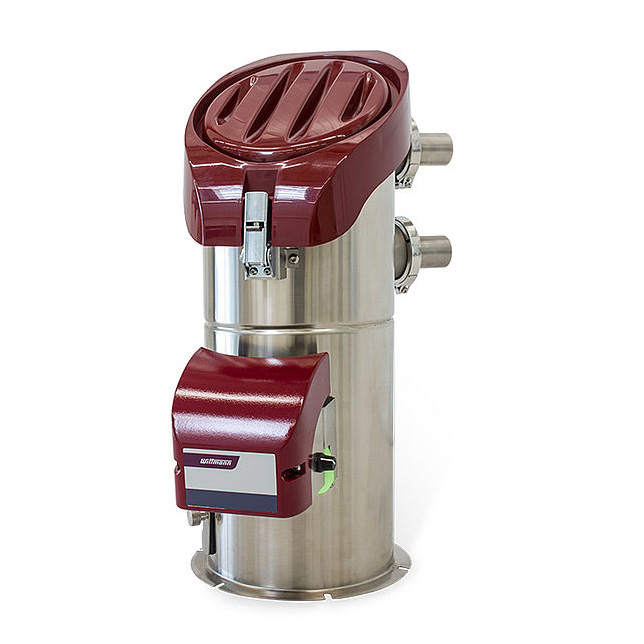

FEEDMAX basic and FEEDMAX plus

This practical, newly designed appliance with the appearance of a single loader has been equipped with high-performance blowers, so that it can reach a higher material throughput and handle material conveyance over longer distances.

FEEDMAX plus, based on the central loaders with discharge shut-off valves, offers the possibility of controlling up to 24 devices using the TEACHBOX basic touchscreen remote control – even in combination with FEEDMAX basic.

Material contacting components of stainless steel.

Vacuum connection with sealing surface.

Flap lid with integrated screen.

Inlet with proper wall thickness, special steel casting.

ambiLED status Display

• Superior wear resistance
  Pneumatically actuated cast stainless steel material and vacuum valves for highly abrasive feeding applications.

• Complete flexibility
  Stainless steel line size reducers can be easily interchanged to maximize flexibility.

• Ergonomic design
  A hinged lid without valves or hose connections offers unmatched accessibility for simple cleaning.

• Simple cleaning
  One self-locking toggle latch is easily accessible and opens towards the operator.

• Easy operation
  Modular assemblies with fully accessible quick release band clamps can be easily cleaned and interchanged.

• Easily visible – ambiLED
  Status LEDs and pluggable control cable for all network control Systems.

• Robustness
  Material hopper is well supported through the solid integrated flange structure
